Counting Applications

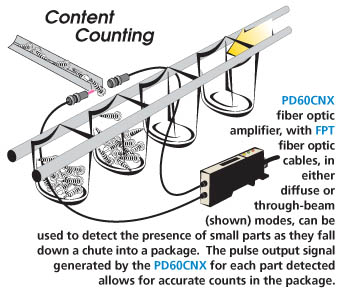

Content Counting

Click on the above picture(s) for further information

PD60CNX Fibre Optic Sensor, Plastic Fibres

The PD60CNX is a fibre optic amplifier made specific for plastic fibres. The sensors are suitable for applications that require little space and high accuracy such as: small part detection, tight locations, checking parts, counting, precise part positioning, material handling and assembly and robotics.

  • Range: Fibre dependent - Diffuse Reflective typ. 80 mm - Through Beam typ. 200 mm
  • Manual distance set-up by keyboard +/- (PD60CNX20BP..), or Teach-In by keyboard or remote setup (PD60CNX20BP.. T)
  • Keyboard lock
  • Microprocessor controlled and EEPROM parameter storage
  • Operational voltage 10 - 30 V DC
  • Output 100 mA, NPN and PNP
  • Light or dark switching selectable
  • Operating frequency 1 kHz; response time ≤ 500 µs (OFF-ON and ON-OFF)
  • Timer: ON-delay or OFF-delay (PD60CNX20BP.. T)
  • Cable or M8 standard plug
  • IP65 protection
  • cUL and CE approved

For Detailed Information:

PD60CNX Fibre Optic Sensor, Plastic Fibres
PD60CNX Fibre Optic Sensor, Plastic Fibres, Teach-In
