Carlo Power Supplies - SPD 30 and 60W

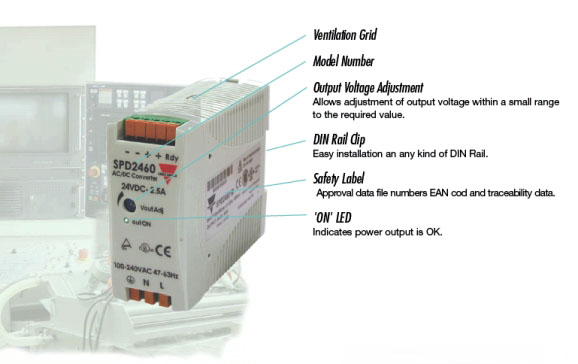

SPD 30 and 60W

  • 30 and 60 Watt Switching Power Supplies
  • 40.5mm wide, plastic enclosure
  • DIN rail mounting
  • Screw terminal or spring terminal connections
  • Input voltage: 85-264VAC or 90-375VDC'
  • Available output voltages: 5, 12, 24 and 48VDC
  • Output voltage adjustment
  • Internal noise filter
  • Short circuit protection
  • Front indication of power 'ON'
  • Output with electrical signal of power 'READY'
  • Operating temperature without derating: -10� to +60�C












Part Number

 Description Vin
*VAC		 Vout
VDC		 Iout
A
SPD 05 30 1 Switching Power Supply 30W, DIN Rail 100 - 240 5 6
SPD 05 30 1 B Switching Power Supply 30W, DIN Rail, Spring Terminals 100 - 240 5 6
SPD 12 30 1 Switching Power Supply 30W, DIN Rail 100 - 240 12 2.5
SPD 12 30 1 B Switching Power Supply 30W, DIN Rail, Spring Terminals 100 - 240 12 2.5
SPD 24 30 1 Switching Power Supply 30W, DIN Rail 100 - 240 24 1.25
SPD 24 30 1 B Switching Power Supply 30W, DIN Rail, Spring Terminals 100 - 240 24 1.25
SPD 48 30 1 Switching Power Supply 30W, DIN Rail 100 - 240 48 0.625
SPD 48 30 1 B Switching Power Supply 30W, DIN Rail, Spring Terminals 100 - 240 48 0.625
SPD 05 60 1 Switching Power Supply 60W, DIN Rail 100 - 240 5 10
SPD 05 60 1 B Switching Power Supply 60W, DIN Rail, Spring Terminals 100 - 240 5 10
SPD 12 60 1 Switching Power Supply 60W, DIN Rail 100 - 240 12 5
SPD 12 60 1 B Switching Power Supply 60W, DIN Rail, Spring Terminals 100 - 240 12 5
SPD 24 60 1 Switching Power Supply 60W, DIN Rail 100 - 240 24 2.5
SPD 24 60 1 B Switching Power Supply 60W, DIN Rail, Spring Terminals 100 - 240 24 2.5
SPD 48 60 1 Switching Power Supply 60W, DIN Rail 100 - 240 48 1.25
SPD 48 60 1 B Switching Power Supply 60W, DIN Rail, Spring Terminals 100 - 240 48 1.25

* Approximate AC Supply voltage is 100-240VAC. However, they can also be powered by lower and higher
   AC voltages and also DC Voltages. See datasheets for more accurate specifications.
