SPD120 Series Switching Power Supplies

SPD 120W

  • 120W Switching Power Supply
  • Metal housing
  • DIN rail mounting
  • Screw terminals or detachable connectors
  • Input voltage, 115/230 selectable by switch: 93-132VAC (115 selected), 186-264VAC (230 selected), or 210-370VDC (230 selected only)
  • Available output voltages: 12, 24 and 48VDC
  • Output voltage adjustment (not on parallel models: their output voltage is fixed at the factory)
  • PFC function available on request
  • Parallel function available on request (up to three power supplies)
  • Short circuit protection and overload protection
  • Front indication of Power 'OK' and 'Output Voltage Low'
  • Relay output for power 'Ready' signal (voltage free terminals), SPD 24 models only
  • Operating temperature without derating: -10° to +60°C
 SPD 120W switching power supplies

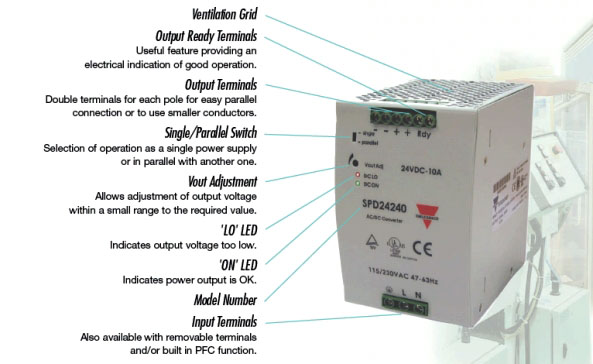

SPD 24 240 1 switching power supply with its terminals, switch and LEDs labeled

(240W version shown above)

Part Number Description Vin
*VAC		 Vout
VDC		 Iout
A
SPD 12 120 1 Switching Power Supply 120W, DIN Rail 100 - 240 12 10
SPD 12 120 1 F Switching Power Supply 120W, DIN Rail, with PFC 100 - 240 12 10
SPD 12 120 1 P Switching Power Supply 120W, DIN Rail, with Parallel function 100 - 240 12 10
SPD 12 120 1 FP Switching Power Supply 120W, DIN Rail, with PFC and Parallel function 100 - 240 12 10
SPD 12 120 1 B Switching Power Supply 120W, DIN Rail, Removable connectors 100 - 240 12 10
SPD 12 120 1 BF Switching Power Supply 120W, DIN Rail, Removable connectors and PFC 100 - 240 12 10
SPD 12 120 1 BP Switching Power Supply 120W, DIN Rail, Removable connectors and Parallel function 100 - 240 12 10
SPD 12 120 1 BFP Switching Power Supply 120W, DIN Rail, Removable connectors, PFC and Parallel function 100 - 240 12 10
SPD 24 120 1 Switching Power Supply 120W, DIN Rail 100 - 240 24 5
SPD 24 120 1 F Switching Power Supply 120W, DIN Rail, with PFC 100 - 240 24 5
SPD 24 120 1 P Switching Power Supply 120W, DIN Rail, with Parallel function 100 - 240 24 5
SPD 24 120 1 FP Switching Power Supply 120W, DIN Rail, with PFC and Parallel function 100 - 240 24 5
SPD 24 120 1 B Switching Power Supply 120W, DIN Rail, Removable connectors 100 - 240 24 5
SPD 24 120 1 BF Switching Power Supply 120W, DIN Rail, Removable connectors and PFC 100 - 240 24 5
SPD 24 120 1 BP Switching Power Supply 120W, DIN Rail, Removable connectors and Parallel function 100 - 240 24 5
SPD 24 120 1 BFP Switching Power Supply 120W, DIN Rail, Removable connectors, PFC and Parallel function 100 - 240 24 5
SPD 48 120 1 Switching Power Supply 120W, DIN Rail 100 - 240 48 2.5
SPD 48 120 1 F Switching Power Supply 120W, DIN Rail, with PFC 100 - 240 48 2.5
SPD 48 120 1 P Switching Power Supply 120W, DIN Rail, with Parallel function 100 - 240 48 2.5
SPD 48 120 1 FP Switching Power Supply 120W, DIN Rail, with PFC and Parallel function 100 - 240 48 2.5
SPD 48 120 1 B Switching Power Supply 120W, DIN Rail, Removable connectors 100 - 240 48 2.5
SPD 48 120 1 BF Switching Power Supply 120W, DIN Rail, Removable connectors and PFC 100 - 240 48 2.5
SPD 48 120 1 BP Switching Power Supply 120W, DIN Rail, Removable connectors and Parallel function 100 - 240 48 2.5
SPD 48 120 1 BFP Switching Power Supply 120W, DIN Rail, Removable connectors, PFC and Parallel function 100 - 240 48 2.5

* Approximate AC Supply voltage is 100-240VAC. However, they can also be powered by lower and higher AC voltages and also DC Voltages. See datasheets for more accurate specifications.

Datasheet: SPD 120W datasheet (PDF)
