SPD240 Series Switching Power Supplies

SPD 240W

240W Switching Power Supply
Metal housing
DIN rail mounting
Screw terminals or detachable connectors
Input voltage: 93-132VAC (115 selected), 186-264VAC (230 selected), or 210-370VDC (115/230 autoselect)
Available output voltages: 24 and 48VDC
Output voltage adjustment (not when the S/P switch is set to parallel)
PFC function standard
Parallel function standard (up to three power supplies) selectable from front panel
Short circuit protection, overvoltage and overload protection
Front indication of Power 'OK' and 'Output Voltage Low'
Relay output for power 'Ready' signal (voltage free terminals), SPD 24 models only
Operating temperature without derating: -10° to +60°C

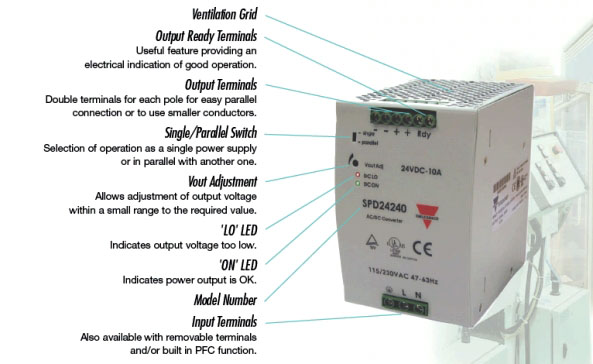

SPD 24 240 1 switching power supply with its terminals, switch and LEDs labeled

Part Number	Description	Vin *VAC	Vout VDC	Iout A
*SPD 24 240 1*	Switching Power Supply 240W, DIN Rail, PFC and Parallel function	100 - 240	24	10
*SPD 24 240 1 B*	Switching Power Supply 240W, DIN Rail, Removable connectors, PFC and Parallel function	100 - 240	24	10
*SPD 48 240 1*	Switching Power Supply 240W, DIN Rail, PFC and Parallel function	100 - 240	48	5
*SPD 48 240 1 B*	Switching Power Supply 240W, DIN Rail, Removable connectors, PFC and Parallel function	100 - 240	48	5
SPD 240W Compact
*SPD 12 240 1C X*	192W Power Supply 150% Peak Load Output	88 - 264	12	16
*SPD 24 240 1C X*	240W Power Supply 150% Peak Load Output	88 - 264	24	10

* Approximate AC Supply voltage is 100-240VAC. However, they can also be powered by lower and higher AC voltages and also DC Voltages. See datasheets for more accurate specifications.

Datasheets: SPD 240W datasheet (PDF); SPD 240W Compact datasheet (PDF)
