SPD480 Series Switching Power Supplies

SPD 480W

  • 480W switching power supply
  • Metal housing
  • DIN rail mounting
  • Available output voltages: 24 and 48VDC
  • Screw terminals or detachable connectors
  • Input voltage: 90-264VAC or 120-370VDC (115/230 autoselected)
  • Output voltage adjustment (not when the S/P switch is set to parallel)
  • PFC function standard
  • Parallel function standard (selectable by front switch)
  • Short circuit, overload and overvoltage protection
  • Relay output for power 'Ready' signal (voltage free terminals), SPD 24 models only
  • Ambient temperature: -25°C to 71°C (derating >56°C to +71°C: 2.5%/°C)
 SPD 480W switching power supplies

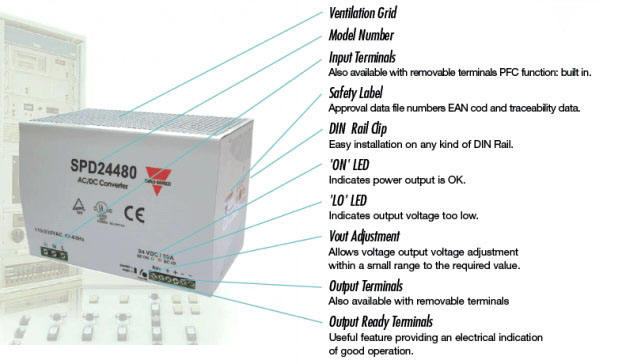

SPD 24 480 1 switching power supply with its terminals, switch and LEDs labeled

Part Number Description Vin
*VAC		 Vout
VDC		 Iout
A
SPD 24 480 1 Switching Power Supply 480W, DIN Rail, PFC and Parallel function 100 - 240 24 20
SPD 24 480 1 B Switching Power Supply 480W, DIN Rail, Removable connector, PFC and Parallel function 100 - 240 24 20
SPD 48 480 1 Switching Power Supply 480W, DIN Rail, PFC and Parallel function 100 - 240 48 10
SPD 48 480 1 B Switching Power Supply 480W, DIN Rail, Removable connector, PFC and Parallel function 100 - 240 48 10

* Approximate AC Supply voltage is 100-240VAC. However, they can also be powered by lower and higher AC voltages and also DC Voltages. See datasheets for more accurate specifications.

Datasheet: SPD 480W datasheet (PDF)
